Barbed Wire

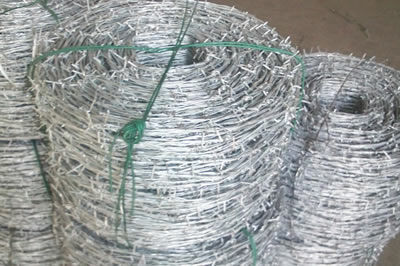

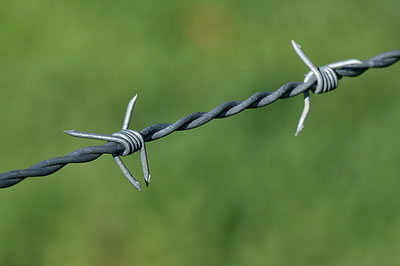

We supply galvanized barbed iron wire in IOWA type, with 2 strands, 4 points.Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).Galvanized Barbed Iron Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
 |
 |
 |
 |
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip galvanized barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# |
||||
12# x 14# |
||||
14# x 14# |
||||
14# x 16# |
||||
16# x 16# |
||||
16# x 18# |
||||
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|
