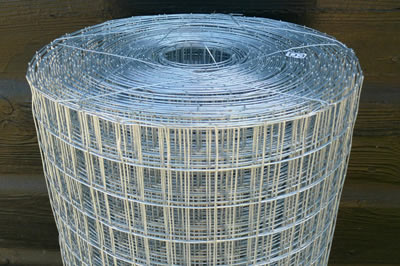

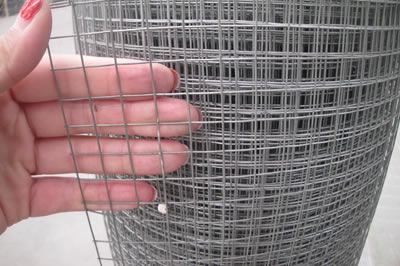

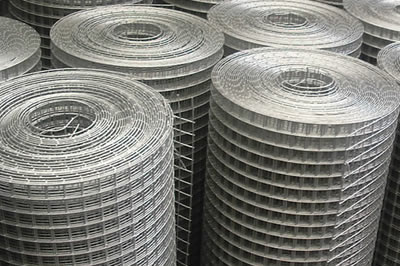

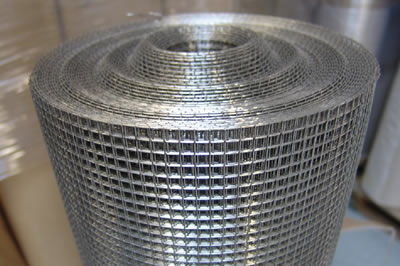

Welded Wire Mesh

Welded wire mesh, or welded mesh, is made from choice plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.

Varieties available according to processing and finish treatment:

  • Welded wire mesh, galvanized before weaving
  • Welded wire mesh, galvanized after weaving
  • Welded wire mesh, thermal electroplated
  • Welded wire mesh, PVC coated

General roll width of Welded Mesh: 3', 4', 5', 6'
Welded Mesh Length: 100'
General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
General wire gauge (BWG): 14# to 23#





Mesh Size

Wire Gauge Diameter

In MM

In Inch

BWG No.

MM

6.4mm

1/4Inch

BWG24-22

0.56mm- 0.71mm

9.5mm

3/8Inch

BWG23-19

0.64mm - 1.07mm

12.7mm

1/2Inch

BWG22-16

0.71mm - 1.65mm

19.1mm

3/4Inch

BWG21-16

0.81mm - 1.65mm

25.4x 12.7mm

1 x 1/2Inch

BWG21-16

0.81mm - 1.65mm

25.4mm

1Inch

BWG21-14

0.81mm - 2.11mm

38.1mm

1 1/2Inch

BWG19-14

1.07mm - 2.11mm

25.4 x 50.8mm

1 x 2Inch

BWG17-14

1.47mm - 2.11mm

50.8mm

2Inch

BWG16-12

1.65mm - 2.77mm
